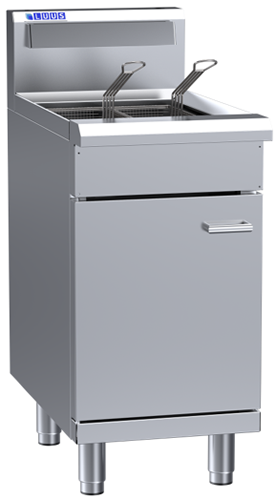

LUUS FV-45 – 2 Baskets 1 Pan Gas Deep Fryer

LUUS FV-45 – 2 Baskets 1 Pan Gas Deep Fryer

Regular Price $6,048.00 + GST VIP Sale Price $4,750.00 + GST
Model: FG-40
Size: 450mm x 800mm x 1100mm (WxDxH)

Product Description

LUUS FV-45 – 2 Baskets 1 Pan Gas Deep Fryer

• Easy to clean V-pan design with cool zone
• High performance burners and recovery rates
• Includes pilot, FFD, piezo and high temp cutout
• 30kg/h production rate
• 20 litre oil capacity
• Cabinet design with internal fryer controls
• Supplied with 2 fryer baskets
• Modular Professional series design
• 24 month ‘Platinum Warranty’
• Easy control/burner access for servicing

V-Pan Fryer
• 100MJ/h jet burner with pilot, FFD and piezo ignition
• Mechanically controlled thermostat
• Thermostat temperature range 100 – 200° C
• High temperature cut-out safety mechanism
• 304 grade 1.5mm stainless steel tank
• 20 litre tank capacity
• Includes 2 stainless steel fryer baskets
• 0.9mm stainless steel perforated fish/base plate
• Tank drainage valve at bottom front of unit

Overall Construction
• Heavy duty construction
• Constructed 0.9mm 304 stainless steel door
• High density Fiberfrax Durablanket insulation around tank
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Includes stainless steel legs with 55mm adjustable range

Dimensions
• 450mm x 800mm x 1100mm H
• Working height 900mm
• Weight 72kg
• Packed dimensions 640mm x 860mm x 1260mm H
• Packed weight 92kg
Connections
• Gas 3/4” BSP male
• Gas 225mm from right, 50mm from rear, 210mm from floor
• In-built gas regulator (specify Nat or LP on order)
• Drain 1 1/4” BSP male
• Drain 225mm from left, 70mm from front, 385mm floor

Specifications

Warranty 2 Years
Made In Australia
Power Rating 100mj NAT/100mj LPG
